Zirco Cartridge

Not all carts are made the same. Our Zirco cartridges are precision manufactured with the highest quality and safety standards. The MZCT™ heating core  delivers unrivaled efficacy, flavor, and performance.
Request samples
Description
Specification
Instruction
Customization
Request Samples
At S10 Labs, we decided to bring about the next phase in vaporizer and cartridge technology with medical grade zirconia ceramics.

Zirconia ceramics is the new standard. This medical-grade material has been utilized for medical applications in surgical procedure and dentistry.

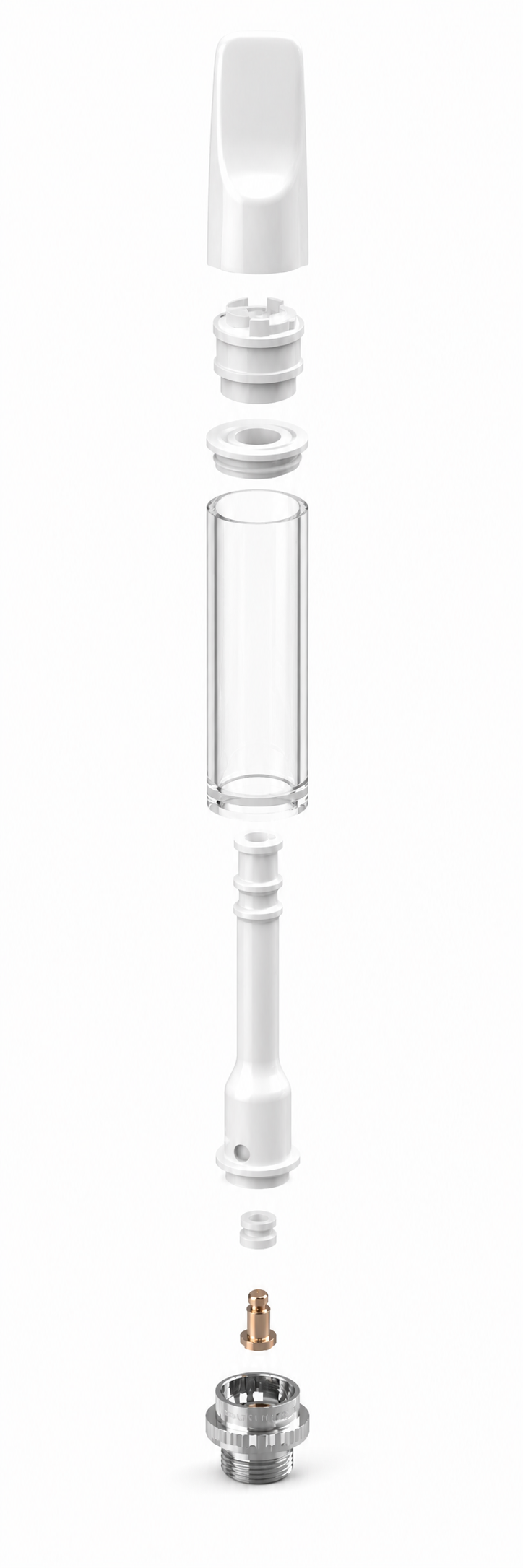

Zirconia Tehcnology

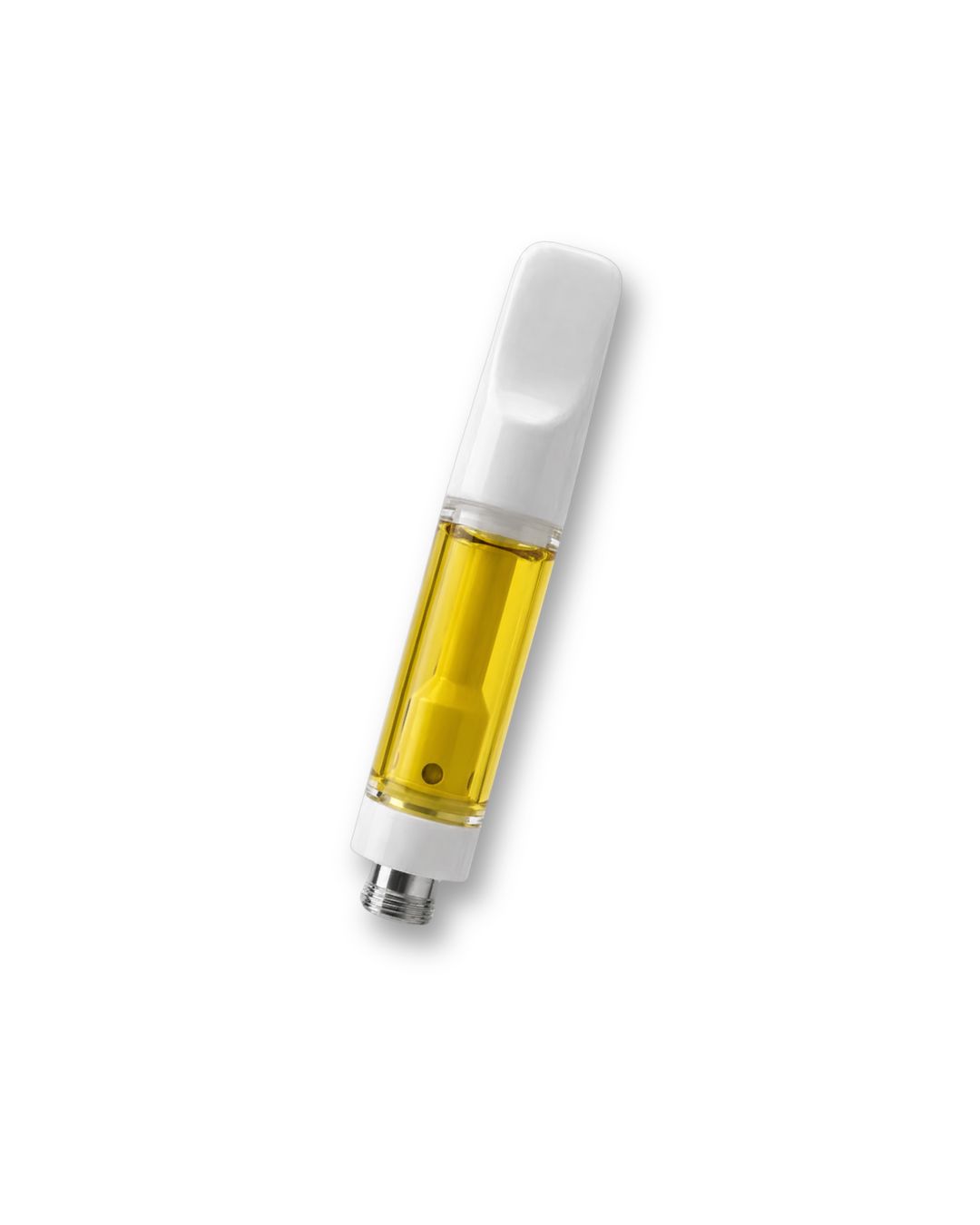

Zirconia Tehcnology

Oil Capacity:

0.5ml & 1.0 ml

Size:

0.5 - 10.5 * 53 mm
1.0 - 10.5 * 65 mm

Aperture

3 * 1.8 mm
3 * 2.0 mm

Casing Material:

Quartz Glass

Center Post Material:

Zirconia Ceramic

Coil Material:

Ceramic

Coil Resistance:

1.4 ohms

Thread:

510

Fill Type:

Top-Filled

Capping:

Screw & Press

FILLING INSTRUCTIONS

1. Fill a syringe with a blunt tip needle with your desired oil. Insert the needle into the chamber between the center post and the outer tank wall.

2. Depending on the consistency of oil, heating may be necessary to match the viscosity.

3. Dispense oil into the chamber up to the lower gasket located on the center post.
DO NOT OVERFILL as overfilling can cause leaking.

4. Do not fill in the center post. Filling this in will cause blockage of the air path and cause leakage.


CAPPING INSTRUCTIONS

1. Capping can be done by arbor press or by hand. When capping, do not exert too much force.

2. For thicker viscosities, let the oil settle in the cartridge until the oil is able to reach the bottom of the tank. After, cap the cartridge to ensure that proper pressure is utilized to seal the cartridge.

3. After capping, the cartridge must be kept upright and be allowed a minimum of 2 hours for the saturation period.

4. Once capped, the cap cannot be removed.
FILLING INSTRUCTIONS

1. Fill a syringe with a blunt tip needle with your desired oil. Insert the needle into the chamber between the center post and the outer tank wall.

2. Depending on the consistency of oil, heating may be necessary to match the viscosity.

3. Dispense oil into the chamber up to the lower gasket located on the center post.
DO NOT OVERFILL as overfilling can cause leaking.

4. Do not fill in the center post. Filling this in will cause blockage of the air path and cause leakage.


CAPPING INSTRUCTIONS

1. Capping can be done by an assisted capping machine or by hand. When capping, do not over tighten and adjust machine accordingly.

2.  For thicker viscosities, let the oil settle in the cartridge until the oil is able to reach the bottom of the tank. After, cap the cartridge to ensure that proper pressure is utilized to seal the cartridge.

3. After capping, the cartridge must be kept upright and be allowed a minimum of 2 hours for the saturation period.
After
Before

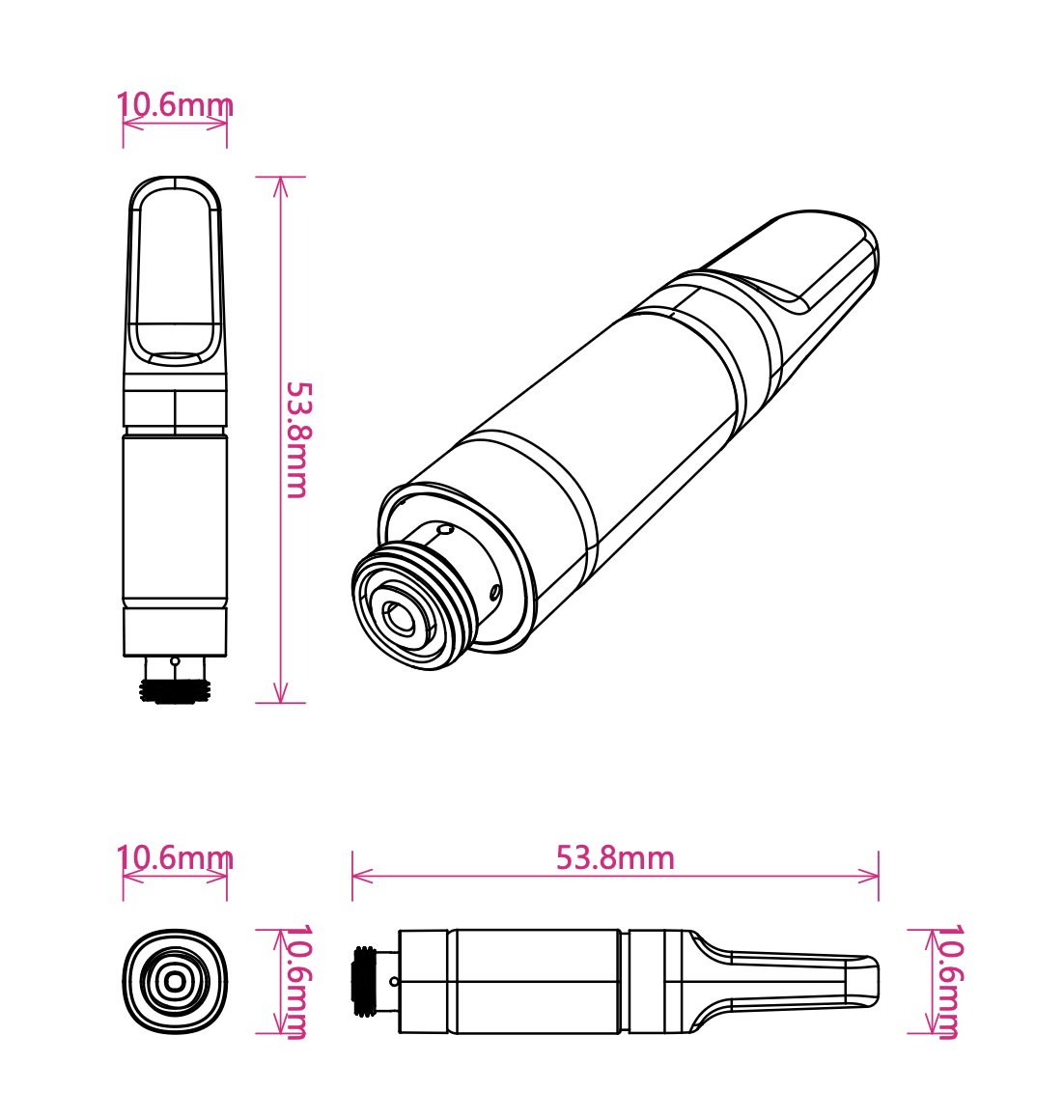

Zirco 0.5ml Cartridge

Tank: 31.4mm x 34.45mm
Ceramic Base: 5mm x 34.45mm
Zirco 1.0ml Cartridge

Tank: 31.4mm x 34.45mm
Ceramic Base: 5mm x 34.45mm
